SKU: XTM356I350A MIG Inverter Machine

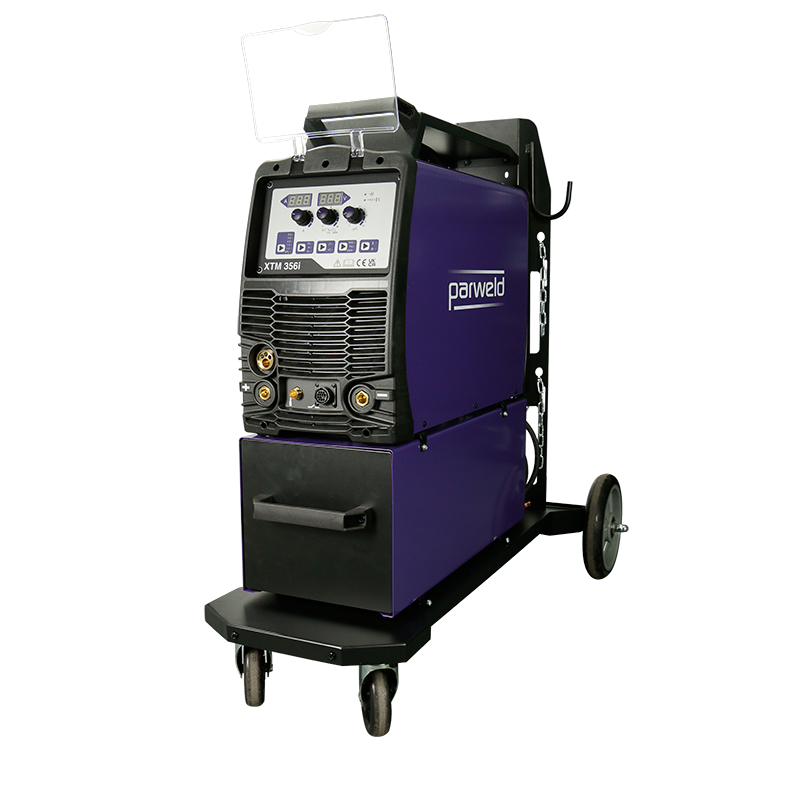

The XTM 356i three phase MIG Inverter is a high performance multi-process power source capable of MIG, Lift TIG, and MMA welding. The LED digital displays show all parameters and data in real time. The machine has built in synergic control, so welding parameters will adjust automatically when the current is changed, making it easy to operate. The XTM 356i Power Source Welding Machine comes ready assembled to the TR008 Trolley. You can choose between a conveniant practical drawer attachment (fitted to the trolley as standard) or a Water Cooler Unit attachment (in replace of the drawer) to accompany the Welding Machine on the Trolley.
Key Features Include:
- Multi-Process MIG/TIG/MMA Welding
- 400V Three Phase Machine
- Quick and Easy Selection of Welding Processes, Control type, Material and Wire Size
- Synergic Control
- Fan On Demand
- 2T / 4T Trigger Latching
- Real Time Display of Parameters and Data
- Soft Switching Technology for improved efficency
- Clear Visor for Front Panel Controls Protection
- Supplied with Gas Hose and 3m Earth Lead
Additional Information
| Torch and Regulator | Machine Only, XP8-300A MIG Torch and WP17V 12-2IX TIG Torch with Argon Regulator, XP8-300A MIG Torch with Argon Regulator |
|---|---|
| Phase | Three Phase |
| Machine Style | Compact, Portable |
| Machine Type | Inverter |
| Maximum Current | 350A DC |
| Duty Cycle | 350A @ 35% Duty Cycle |
| Input Voltage | 400V 3P |
| Voltage | 10.4-24V (TIG), 15.5-31.5V (MIG), 20.4-34V (MMA) |
| Feed Box | 4 Roll Drive |
| Input Current (Eff) | MIG - 13.5A, TIG - 10.2A, MMA - 14.5A |
| Output | DC |
| Wire Size | 0.6-1.2mm |
| Spool Size | 200mm (5kg), 300mm (15kg) |
| Minimum Fuse Rating | 16A |
| KVA | 15.9 |
| Generator Size (Requires AVC) | 18 KVA |
| Enclosure Protection | IP23S |
| Cooling | Air, Fan, On Demand, Water (with Unit Attachment) |
| Comes With | 3m Earth Cable, 3m Input Cable, Gas Hose, TR008 Trolley |
| Ideal for Applications | Heavy Fabrication, Industrial Manufacturing, Synergic Program for Mild Steel |
| Special Features | 2T/4T Latching, Bottle Stand, Storage Drawer, Synergic Control, Synergic Welding Rapid Set Up |
| MIG Machine Type | Inverter |
| Warranty | 5 Year Warranty |
