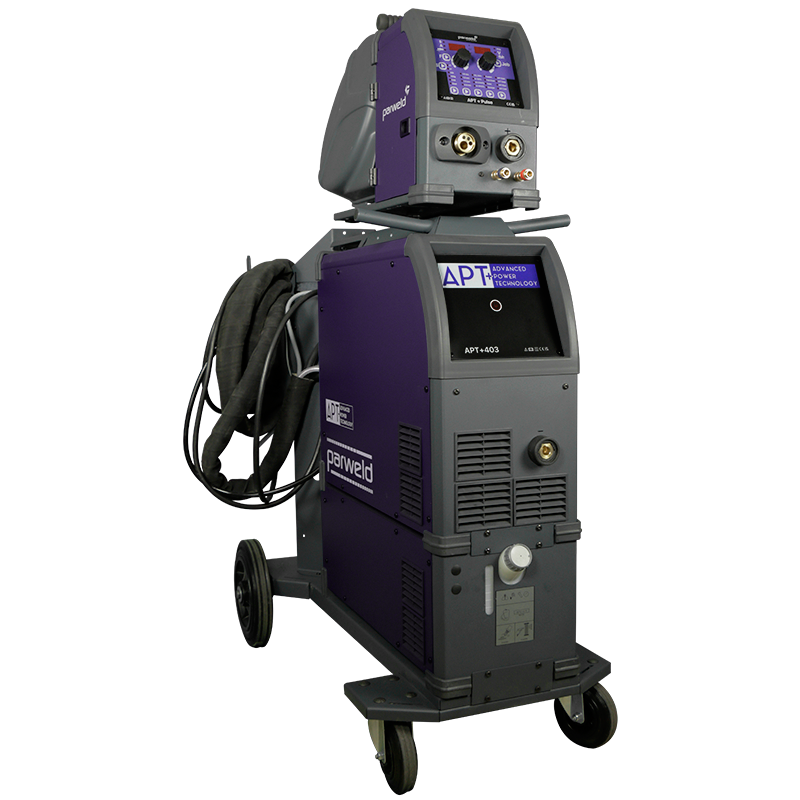

400 AMP PULSE MIG MACHINE
Login to see prices
SKU: APT+M403S400A Pulse MIG Machine
Advanced Power Technology + Machine with 400V mains voltage. Professional Multi-Process Pulse Welding Power Source allowing users to undertake MIG, TIG and MMA (Electrode) Welding Processes within a single machine.
- It provides welding without splatter by means of Synergic, Pulse.
- Comes with APT+ M Root, Deep, Cold, Position, Stabi and Pipe programs.
- Equipped with special programs for Steel / CrNi / Aluminum / Copper welding.
- Digital display and easy-to-use front panel, allows the welder to adjust all values from the wire feeder.
- Encoder drivemotor and 4×4 wire feed unit ensure stable arc formation. Especially with aluminum wires.
- APT+M Pulse Inverter Technology, delivers up to 35% energy saving.
- Stable arc characteristic accross a wide range of processes
Additional Information
| Torch and Regulator | Machine Only, PRO-Grip MAX (PRO4400-30ER) MIG Torch, PRO-Grip MAX (PRO4400-30R) MIG Torch with Argon Regulator, XP350A-30E MIG Torch, XP350A-30E MIG Torch with Argon Regulator |
|---|---|
| Cooling Attachment | APT+ 907 Fitted Water Cooler Unit, No Attachment |
| Pulse | Double Pulse |
| Machine Style | Portable, Professional Welding, Separate |
| Machine Type | Advanced Pulse MIG |
| Maximum Current | 400A DC |
| Duty Cycle | 300A @ 100% Duty Cycle, 400A @ 60% Duty Cycle |
| Input Voltage | 400V 3P |
| Amp Range | 20-400A |
| Open Circuit Voltage | 75VDC |
| Maximum Input Power (kVA) | 17.8V |
| Output | DC |
| Spool Size | 300mm (15kg) |
| Phase | Three Phase |
| Welding Programs | Aluminium Welding, Copper Welding, CrNi Welding, Steel Welding |
| Enclosure Protection | IP23S |
| Cooling | Air, Fan, Smart Efficent Fan, Water (with Unit Attachment) |
| Trolley | TR011 Trolley |
| Comes With | 3m Mains Cable, 5m Air Cooled Interconnector Lead (7 Pin), CKC403 Work Return Lead (3m), D/Roll 1.0-1.2 V Groove |
| Special Features | 35% Energy Saving, Digital Display, Encoder drivemotor and 4×4 wire feed unit, High Speed Communication, Ideal for Advanced Professional Welding, Spatter Free Weld, Stable Arc Characteristic during |
| MIG Machine Type | Pulse |
| Warranty | 5 Year Warranty |
| Conforms To | IP23S, ISO/IEC 60974-1, ISO/IEC 60974-6, RoHS Compliant |
