DIGITAL MIG MACHINE INC MMA LEADS AND GAS HOSE
Login to see prices
SKU: XTM211DI200A 4 in 1 Multi-Process Inverter Machine

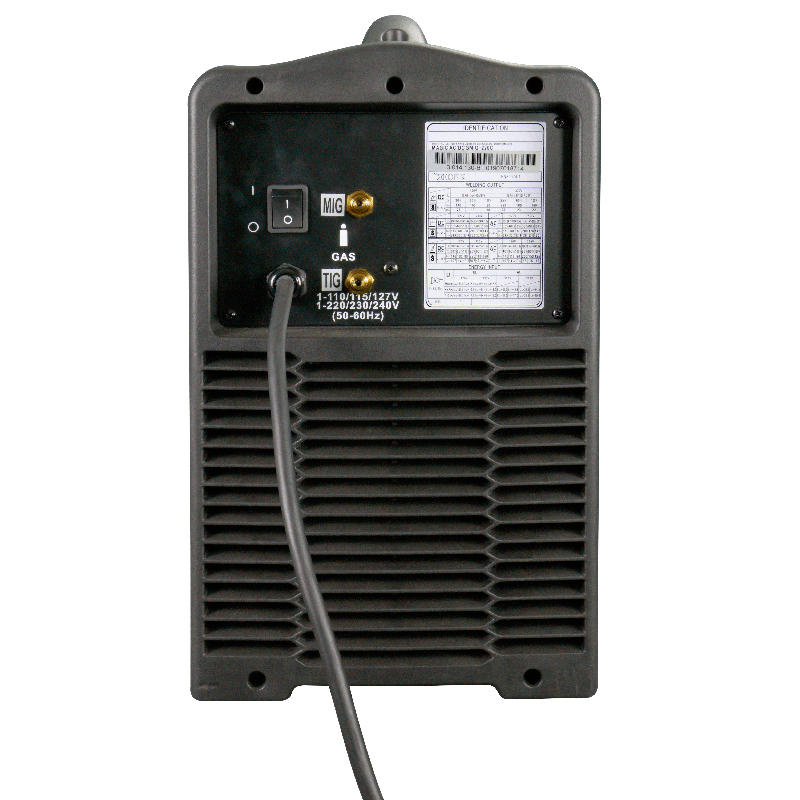

The XTM 211Di MIG Inverter has 4 different processes available to the user making it ideal for the welding of Steels, Stainless Steels and Aluminium using the MIG, AC TIG, DC TIG or MMA processes. The machine uses auto polarity switching so there is no need to change the work lead connections on the front of the machine. Instant swapping between the MIG and TIG processes with one touch of the torch trigger makes it well suited to pipe applications or multi process workshops. The multi-language digital user interface rapidly gets you to the correct machine setting with minimal process knowledge, on site or in the workshop.
Key Features Include:
- Easy to follow Digital Interface
- Large high quality colour screen with multi-language function.
- Adjust machine parameters from the MIG torch handle
- View and adjust machine parameters from the MIG torch handle that is equipped with OLED Digital Display
- HF Start TIG
- Instant swapping between MIG and TIG process with one touch of the torch trigger
- Rapid synergic setup for MIG, TIG & MMA Welding
- MIG Weld, down to 0.9mm thick material
- Memory function for all processes to save and recall welding programs
- Pulse TIG function for superior arc control
- Supplied with MMA lead set, input cable and 2 gas hoses
- 15Kg (300mm) Spool Size
- Welding Capacity (230V input)
**PLEASE NOTE - The TR007 Trolley is only compatible with Serial Numbers 2007 or Higher**
Additional Information
| Torch and Regulator | Machine Only, PRO-Grip MAX 26 TIG Torch and Remote Control MIG Torch with Argon Regulator, Remote Control MIG Torch with Argon Regulator |
|---|---|
| Trolley | No Trolley, TR007 Trolley |
| Phase | Single Phase |
| Machine Style | Compact, Portable |
| Machine Type | Inverter |
| Maximum Current | 140A DC, 200A DC |
| Duty Cycle | 200A @ 25% Duty Cycle |
| Input Voltage | 110V 1P, 230V 1P, Dual Voltage, Smart Switching |
| Voltage | 110-200V (MMA), 140-200V (MIG), 140-200V (TIG) |
| Feed Box | 2 Roll Drive |
| Input Current (Eff) | MIG - 21.4A @ 110V / 15A @ 230V, TIG - 20.5 @110V / 11.3A @ 230V, MMA - 20.6 @110V / 15.4A @ 230V |
| Output | DC |
| Wire Size | 0.6-1.0mm |
| Spool Size | 200mm (5kg), 300mm (15kg) |
| Minimum Fuse Rating | 16A, 32A |
| KVA | 7.8 |
| Generator Size (Requires AVC) | 10 KVA |
| Enclosure Protection | IP23S |
| Cooling | Air, Fan, Forced |
| Comes With | 3m Earth Cable, 3m Input Cable, CKE MMA Lead, Digital User Interface, Downloadable Mobile Application Option for Remote Mobile/Tablet Device Operation, Gas Hose, Multi-Language Functions |
| Special Features | Digital User Interface, Pulse TIG function for superior arc control, Smart Switching Dual Voltage, Synergic Control, Synergic Welding Rapid Set Up |
| MIG Machine Type | Inverter |
| Warranty | 5 Year Warranty |
