ESB 44 (E7016 H8) ELECTRODE (4.0 X 450MM) 2.5KG VP
Login to see prices
SKU: 11202SKEM2ESB 44
Magmaweld E7016 H8 Low Hydrogen Electrodes (ESB 44)
Suitable for fabrication and repair welding of dynamically loaded steel constructions, machines and agricultural equipments, workshop and maintenence welding. Smooth and clean welds, blending into base metal without undercuts. Excellent gap bridging properties. The double covering of this electrode produces a stable, concentrated and directed arc, thus being ideally suited for root pass and positional welding and is suited for AC welding. Welds are of X-ray quality.
Approvals & Certificates Include:
- DNV
- DB
- CE
- TSE
- TUV
Welding Positions:
Additional Information
| ESB | 44 |
|---|---|
| Material | Low Hydrogen |
| Size | 2.50mm x 350mm, 3.20mm x 350mm, 3.20mm x 450mm, 4.00mm x 350mm, 4.00mm x 450mm, 5.00mm x 450mm |
| Yield Strength | 450 N/mm² |
| Tensile Strength | 550 N/mm² |
| Elongation A5 | 25% |
| Current Type | AC-/DC+ |
| Charpy V-Notch Properties (J) | 20°C --> 70J / -30°C --> 55J |
| Chemical Composition(s) | C = 0.06 MAX, Mn = 1.00 MAX, Si = 0.60 MAX |
| Grade | E7016 |

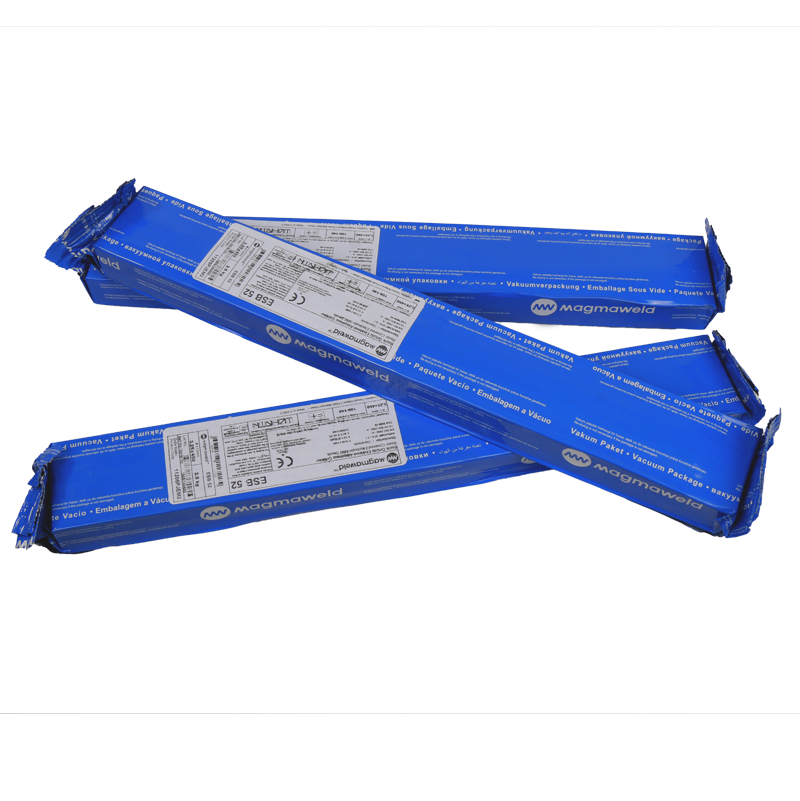

| Package Material | Vac Pac |
| Set Size | Single Box |
| Conforms To | AWS/ASME SFA 5.1 E7016 H8, EN ISO 2560 A E 38 2 B 12 H10, TS EN ISO 2560 A E 38 2 B 12 H10 |
