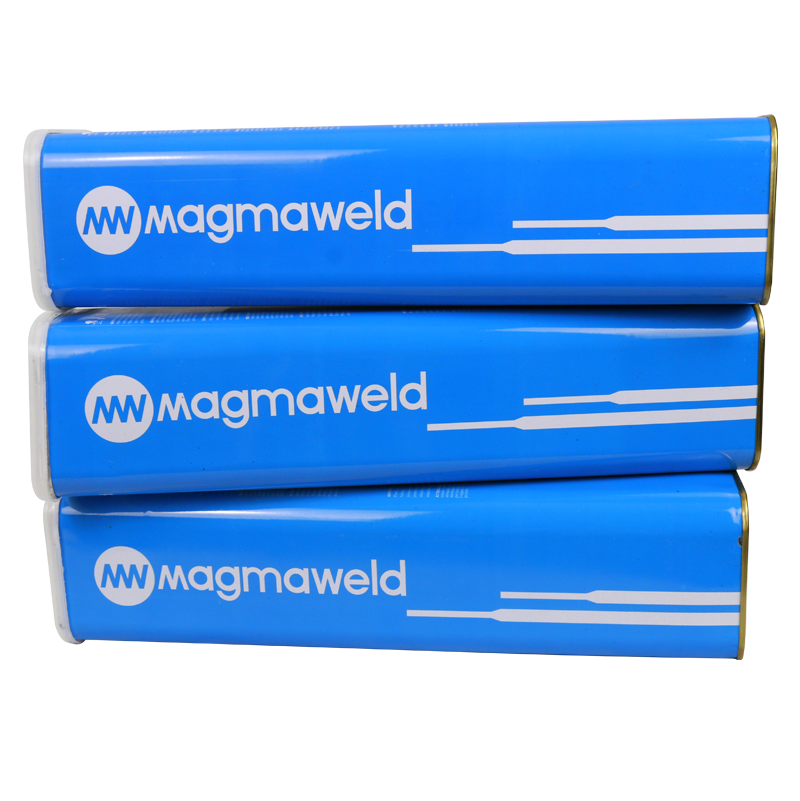

ESC 60 (E6010) ELECTRODE (2.5 X 350MM) 8KG TIN
Login to see prices
SKU: 11400HZTM2ESC 60
Magmaweld E6010 Mild Steel Cellulosic Pipe Electrodes (ESC 60)
Medium coated, cellulosic electrode, especially designed for welding of pipes and plates in all positions at low welding currents. Due to its high penetration, particularly suitable for root pass and fill passes in vertical down direction. Used in pipe-line construction, shipbuilding, storage vessels and assembly works. DCEN (-) is ideal in root passes and DCEP (+) is recommended for fill and cap passes in vertical down position.
Approvals & Certificates Include:
- ABS
- DB
- CE
- BV
- TSE
- CWB
- TUV
Welding Positions:
Additional Information
| ESC | 60 |
|---|---|
| Material | Cellulosic, Mild Steel |
| Size | 2.50mm x 350mm, 3.20mm x 350mm |
| Yield Strength | 470 N/mm² |
| Tensile Strength | 550 N/mm² |
| Elongation A5 | 25% |
| Current Type | AC-/DC+ |
| Charpy V-Notch Properties (J) | '-30°C --> 40J / -20°C --> 60J |
| Chemical Composition(s) | C = 0.12 MAX, Mn = 0.6 MAX, Si = 0.2 MAX |
| Grade | E6010 |
| Package Material | TIN |
| Set Size | Single Box |
| Conforms To | AWS/ASME SFA 5.1 E6010, EN ISO 2560 A E 42 2 C 21, TS EN ISO 2560 A E 42 2 C 21 |
