INVERTER PLASMA CUTTER INC TORCH

SKU: XTP105

100A Plasma Cutter Inverter Machine

The variable output of the XTP 105 makes it ideal for cutting metals up to 30mm thick. Infinite power control allows the output to be tuned to minimise dross on the cut edges.
The pilot arc can be set to automatically re-ignite enabling easy cutting of mesh or perforated materials. Non HF ignition option minimises the risk of interference with electronic systems.
The XTP 105 is able to cope with inputs which fluctuate by +/-15% and can be used with the majority of generators.
The machine is housed in a metal case with carry handles.
Key Features Include:

400V, 3 Phase Input
100A @ 100% Duty Cycle
Cuts Any Metal
30mm Production Cut
50mm Severance Cut
Built-in Air Pressure Regulator
Built-in Air Pressure Gauge
Auto Over Voltage Protection
Auto Over Current Protection
Generator Friendly
Ideal for Mesh Cutting (Mesh Cutting Mode Available)
Non-HF Start
CNC Interface for Automatic Operation

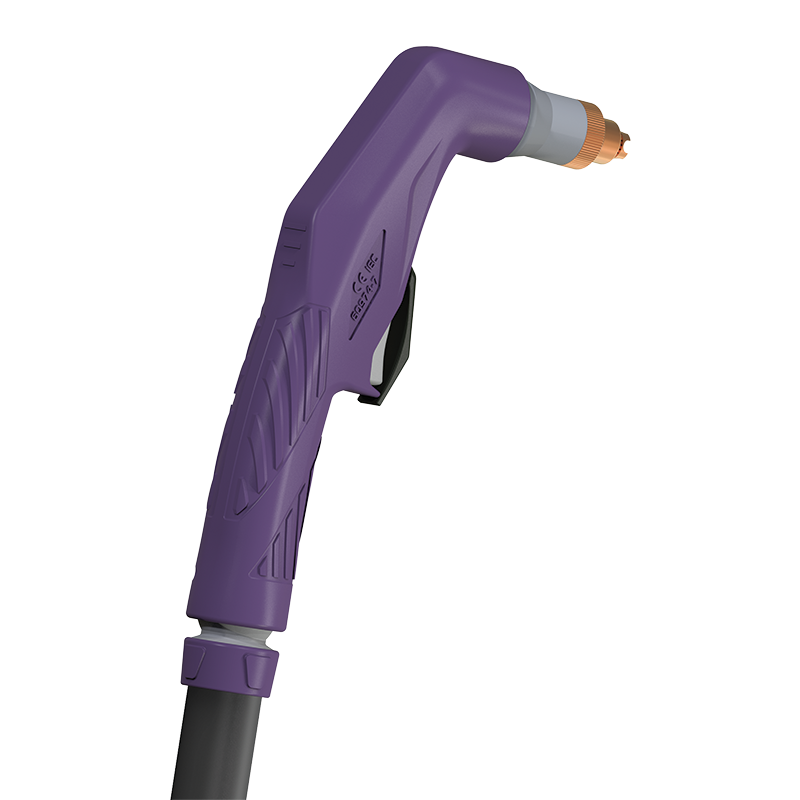

Supplied with XTY125 Plasma Cutter Torch
Supplied with 3m Earth Cable

Additional Information

XTP Machine comes with	XTY125 Plasma Torch
Phase	Three Phase
Machine Style	Compact, Cutting
Machine Type	Inverter
Maximum Current	20-100A
Duty Cycle	100A @ 100% Duty Cycle
Input Voltage	400V 3P
Production Cut Capacity	30mm
Severance Cut Capacity	50mm
Input Current (Eff)	21.6A
Starting Method	Short Circuit
Plasma Built-In	Air Pressure Regulator, Pressure Gauge
Minimum Fuse Rating	32A
KVA	13
Generator Size (Requires AVC)	15 KVA
Cooling	Air, Fan, Forced
Enclosure Protection	IP23S
Comes With	3m Earth Cable, 3m Input Cable, XTY 125 Plasma Torch
Special Features	CNC Interface, Cuts any metal, Ideal for Mesh Cutting, Over Voltage + Over Current Protection
Plasma Cutter Type	Inverter
Warranty	5 Year Warranty
Conforms To	IP23S, ISO/IEC 60974-1, ISO/IEC 60974-6, RoHS Compliant
