TRUE COLOUR LIGHT REACTIVE WELD & GRIND HELMET

SKU: XR938H-ENG

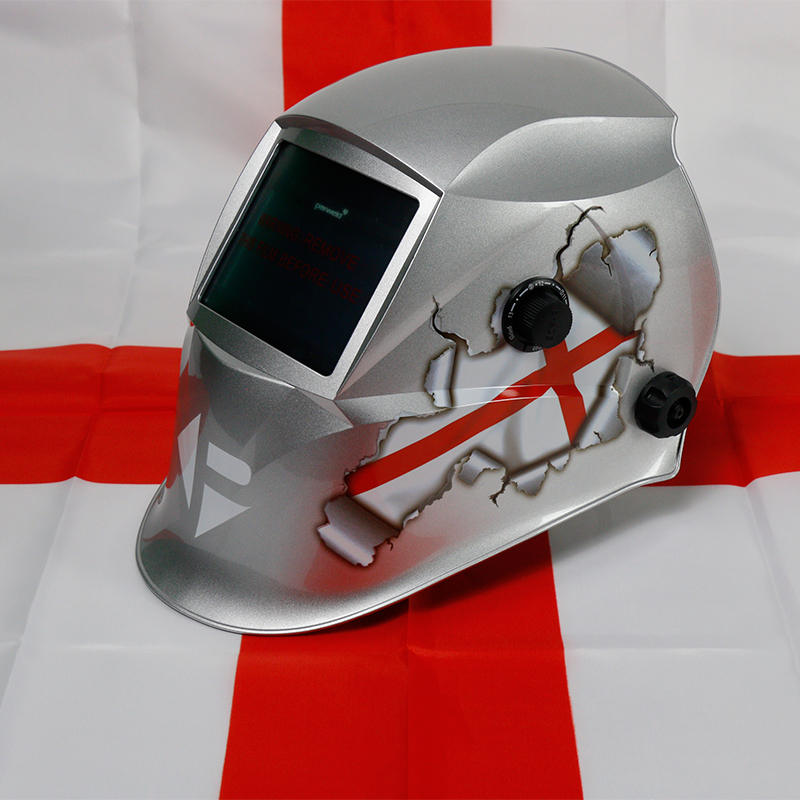

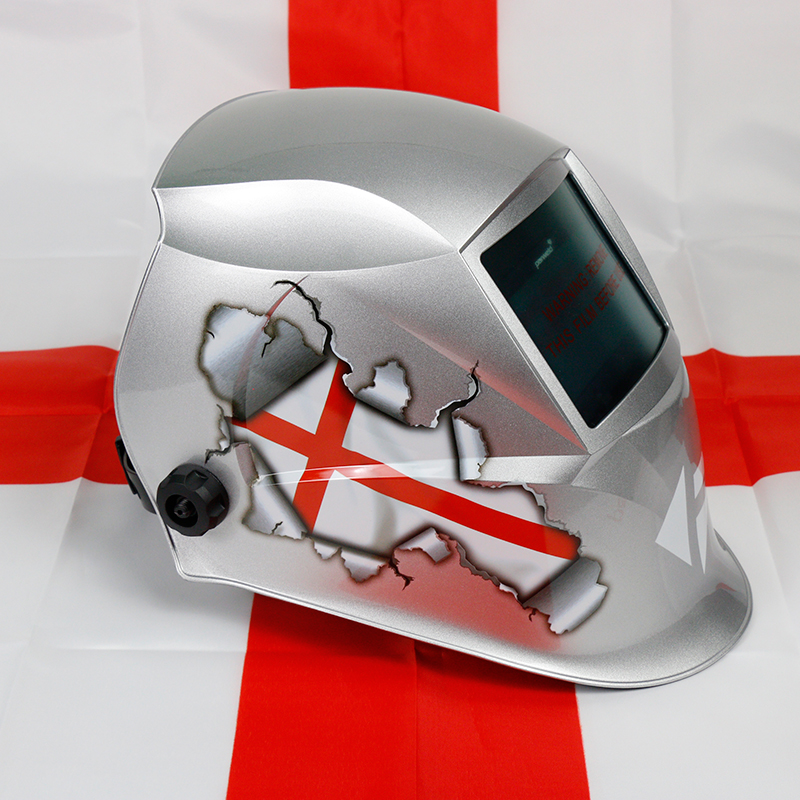

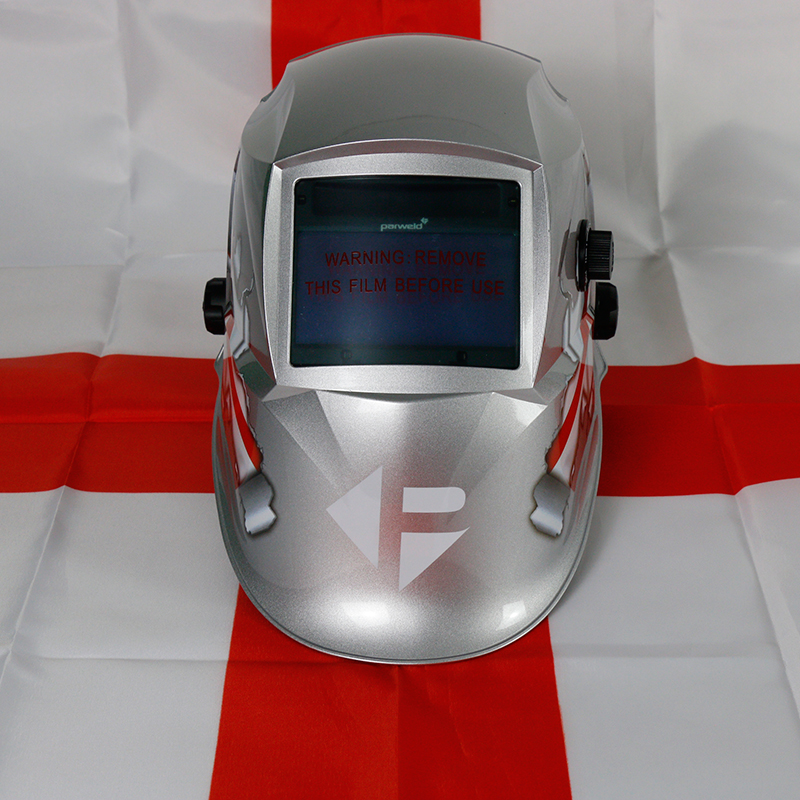

XR938H Welding & Grinding Helmet

The XR938H True Colour Light Reactive Welding and Grinding Helmet is both slim and lightweight in construction. Manufactured from a high impact polyamide nylon material which ensures the helmet provides high levels of comfort and durability. The metallic paint finish ensures maximum heat reflection.
With Full Face Coverage, curved design with a clear spatter shield over the optics provides maximum clarity. The helmet is fully adjustable to suit all head and body types. Features full neck coverage, locking headgear and automatic power on/off switch.
The auto on, auto darkening, wide view lens switches from light to dark in 1/30,000th of a second and offers continuous eye protection against UV and IR radiation, even when the lens is in the light state mode. The grinding switch is conveniently located on the outside of the helmet. The switch locks the filter in the light state (Shade DIN 4) to enable the helmet to be used as a grinding visor.
The helmet is powered by a solar cell with replaceable backup battery.
The welding filter has 4 sensors that react independently as the welding arc is struck enabling the almost instantaneous darkening of the filter. The switching sensitivity knob is located on the inside of the helmet and allows the helmet to be tuned to work in different ambient light levels. All Parweld filters have a Shade 4 light state, ideal for welding preparation.
True Colour Lens


CONTACT SALES TODAY TO ENQUIRE ABOUT YOUR COUNTRY HELMET AND PLACE YOUR ORDER!

Additional Information

Choose Your CountryEngland, Wales
Viewing Size100 x 53mm (3.94” x 2.08”)
Cartridge Size110mm x 90mm (4.33” x 3.54”)
Grind ModeYes
External Shade ControlYes
ShadeMay-13
Light StateDIN Shade 4
Dark StateDIN Shade 5 to 13 Variable
Dark to Light0.1-1.0 seconds (External variable)
Switching Time Light to Dark1/30,000th of a Second
DelayVariable
SensitivityVariable
UV/IR ProtectionPermanent Shade DIN16
Power SupplyBuilt-In Solar Cells and Replaceable Battery Pack
Battery Life Expectancy2 years
Minimum Amp Requirement5A
Power On/OffFully Automatic
Storage Temperature'-20ºC to +70ºC (-4ºF to -158ºF)
Operating Temperature'-10°C to +60°C (14°F to 140°F)
MaterialHigh Impact Polyamide Nylon
Suitable forTIG Welding
Warranty24 months
Conforms ToBS EN 166:2002, BS EN 175, BS EN 175:1997, BS EN 379, BS EN 379:2003+A1:2009, EN 166
