XTM 250AMP MIG INVERTER 400V

SKU: XTM256I

250A MIG Inverter Machine

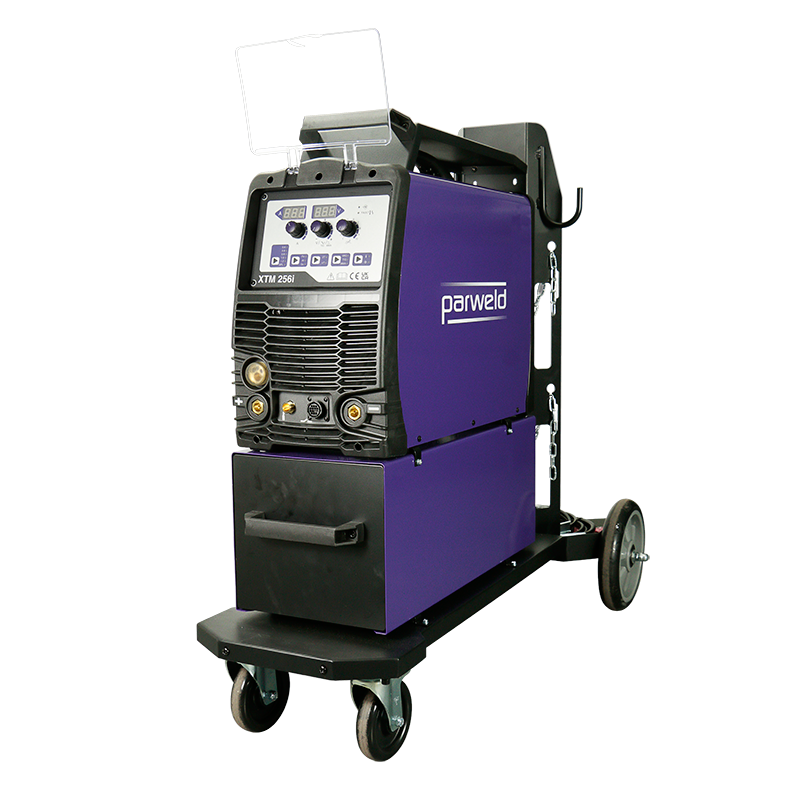

The XTM 256i three phase MIG Inverter is a high performance multi-process power source capable of MIG, Lift TIG, and MMA welding. The LED digital displays show all parameters and data in real time. The machine has built in synergic control, so welding parameters will adjust automatically when the current is changed, making it easy to operate. The XTM 256i Power Source Welding Machine comes ready assembled to the TR008 Trolley, which is equipped witha conveniant practical drawer attachment.

Key Features Include:

Multi-Process MIG/TIG/MMA Welding
400V Three Phase Machine
Quick and Easy Selection of Welding Processes, Control type, Material and Wire Size
Synergic Control
Fan On Demand
2T / 4T Trigger Latching
Real Time Display of Parameters and Data
Soft Switching Technology for improved efficency
Clear Visor for Front Panel Controls Protection
Supplied with Gas Hose and 3m Earth Lead

Additional Information

Torch and Regulator	Machine Only, XP8-200A MIG Torch and WP17V 12-2IX TIG Torch with Argon Regulator, XP8-200A MIG Torch with Argon Regulator
Phase	Three Phase
Machine Style	Compact, Portable
Machine Type	Inverter
Maximum Current	250A DC
Duty Cycle	250A @ 35% Duty Cycle
Input Voltage	400V 3P
Voltage	10.4-20V (TIG), 14.5-26.5V (MIG), 20.4-30V (MMA)
Feed Box	4 Roll Drive
Input Current (Eff)	MIG - 9.3A, TIG - 7.9A, MMA - 10.9A
Output	DC
Wire Size	0.6-1.2mm
Spool Size	200mm (5kg), 300mm (15kg)
Minimum Fuse Rating	16A
KVA	11.6
Generator Size (Requires AVC)	13 KVA
Enclosure Protection	IP23S
Cooling	Air, Fan, On Demand, Water (with Unit Attachment)
Comes With	3m Earth Cable, 3m Input Cable, Gas Hose, TR008 Trolley
Ideal for Applications	Industrial Manufacturing, Metal Fabrication, Synergic Program for Steel, Training
Special Features	2T/4T Latching, Bottle Stand, Storage Drawer, Synergic Control, Synergic Welding Rapid Set Up
MIG Machine Type	Inverter
Warranty	5 Year Warranty
