NEW
XR944A

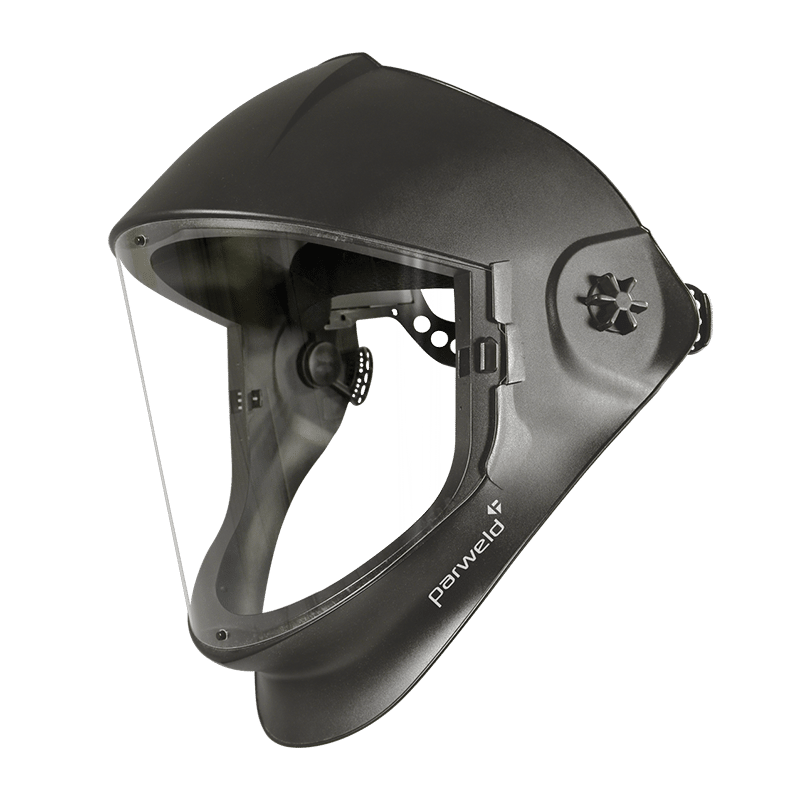

Helmet & Respirator

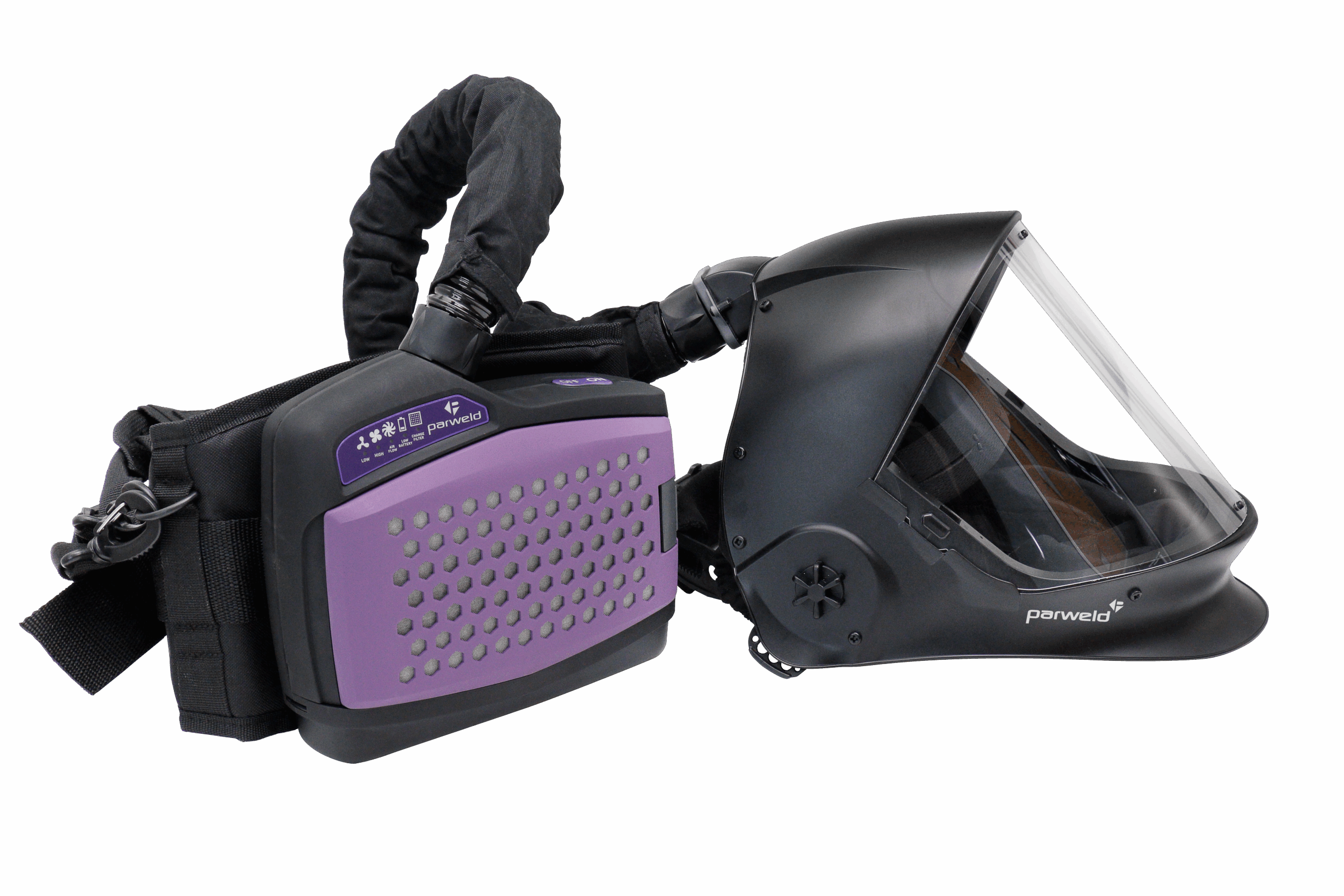

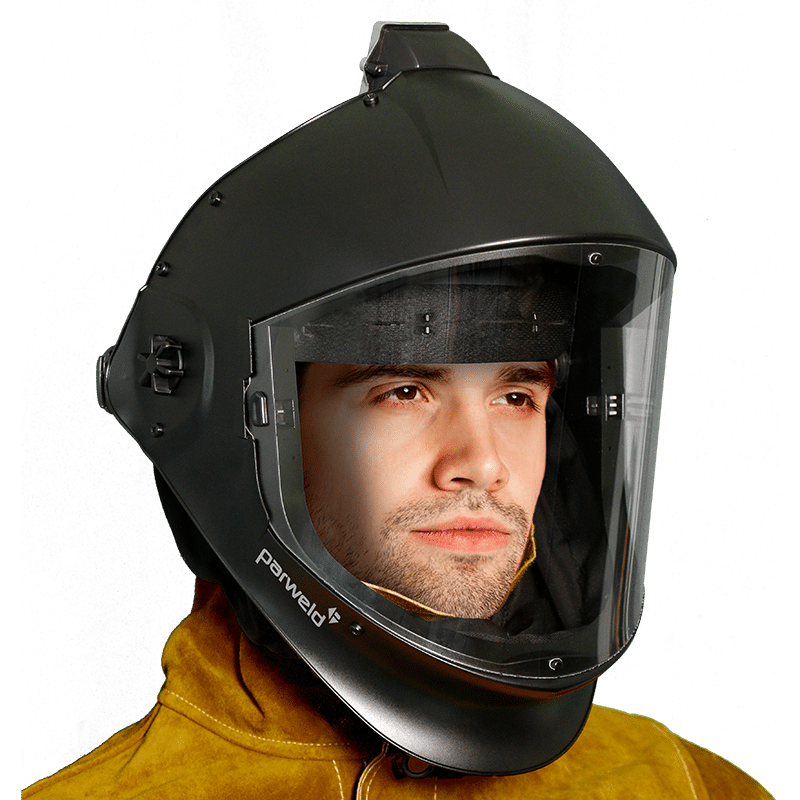

A Clear Vision Full Face Protective Visor Includes PAPR Filter System

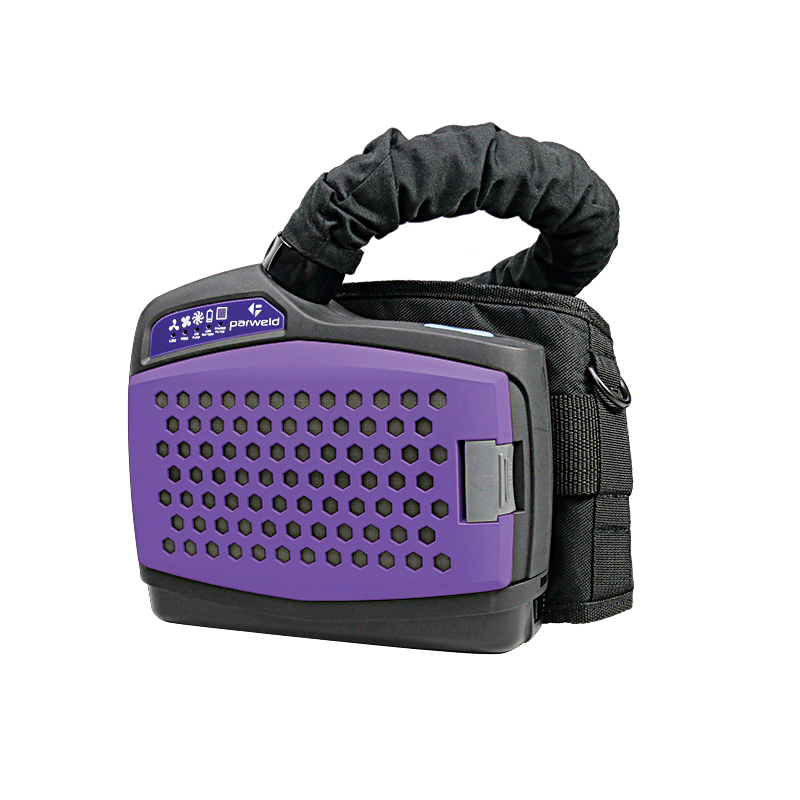

The Parweld XR944A PAPR (Powered Air Purifying Respirator) is designed for particulate environments. It has a simple status display and a smooth, ultra-quiet brushless motor with two-speed airflow control. It features audible and vibration warnings, a comfort belt with detachable shoulder straps, and a removable lithium-ion battery with a 11-hour runtime. The unit is lightweight at less than 1.1 kg and includes easy-tooperate controls. It comes supplied with an A1 P3 main filter, an activated carbon pre-filter, and a metal spark arrester for comprehensive filtration. This system is TH3P certified in accordance with European standard EN 12941:1998/A1:2004/A2:2008 TH3P.

Provides Excellent Field Of View

Face and eye protection: against liquid splash, low-energy flying particles and dust (Grade F Rated)

PAPR Positive Pressure P3 Filtration: TH3P Level Protection In Dust And Fume Applications

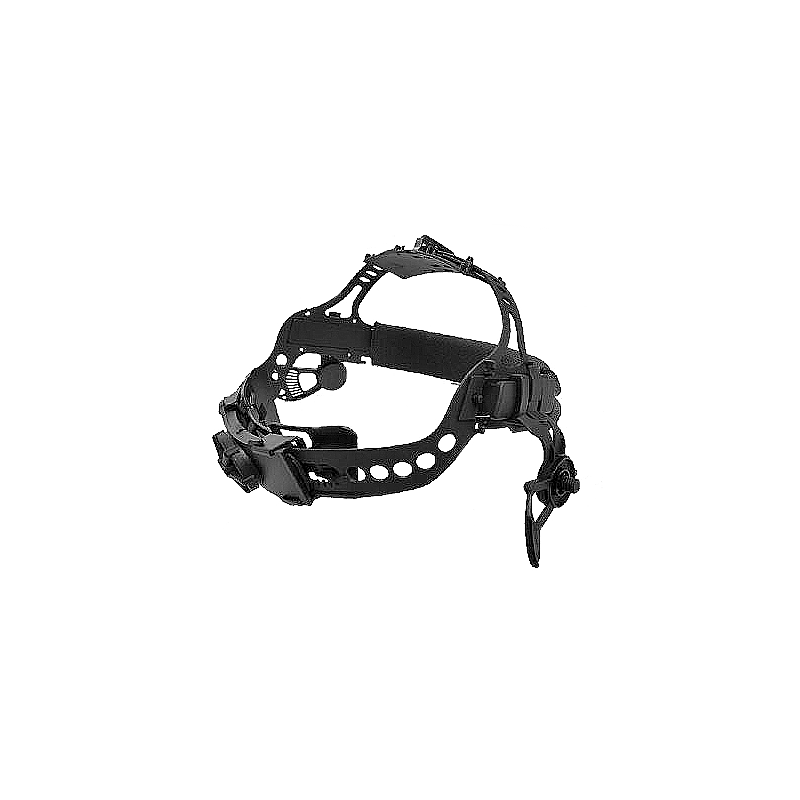

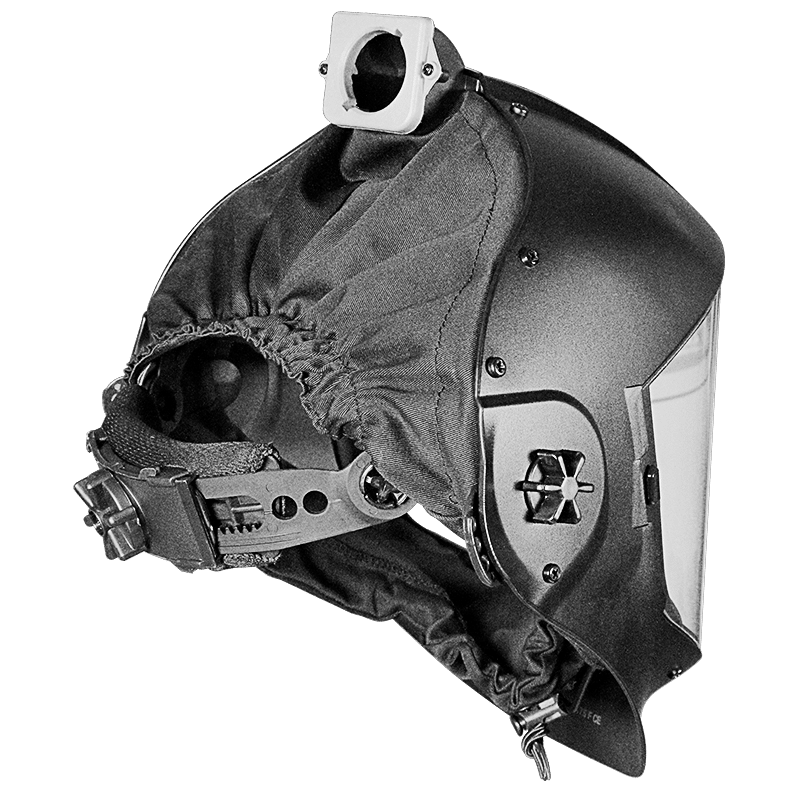

Fully Adjustable Head Harness: Ensures A Perfect Fit In All Applications

Dual-Speed Blower Unit: Includes HD Battery for Up to 11 Hours Continous Run Time

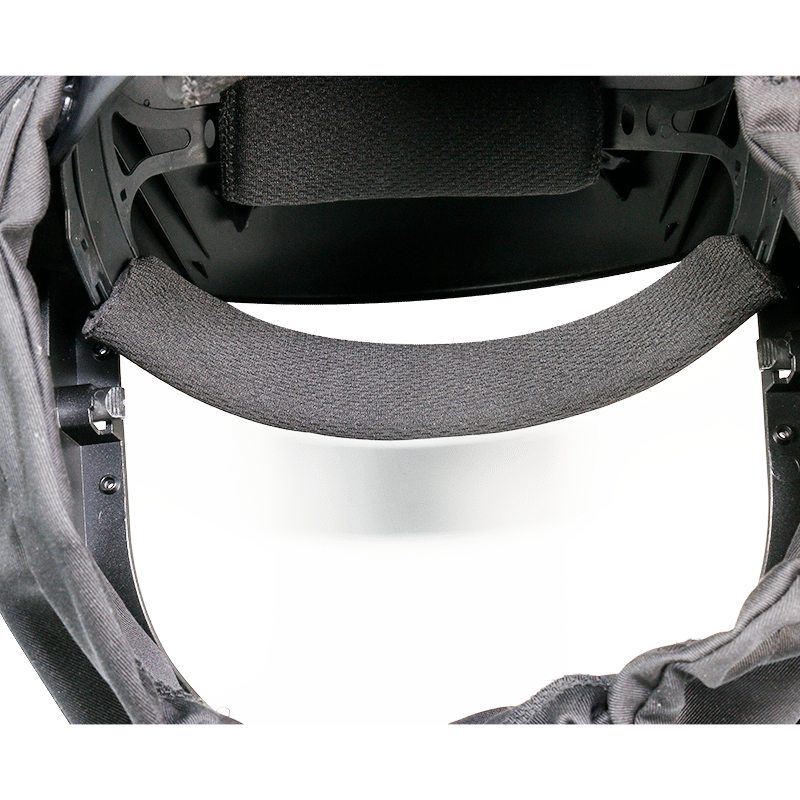

Full-Coverage Face Shield: High Durability for All-Day Eye and Face Protection. Includes a Replaceable Soft Fabric Face Seal

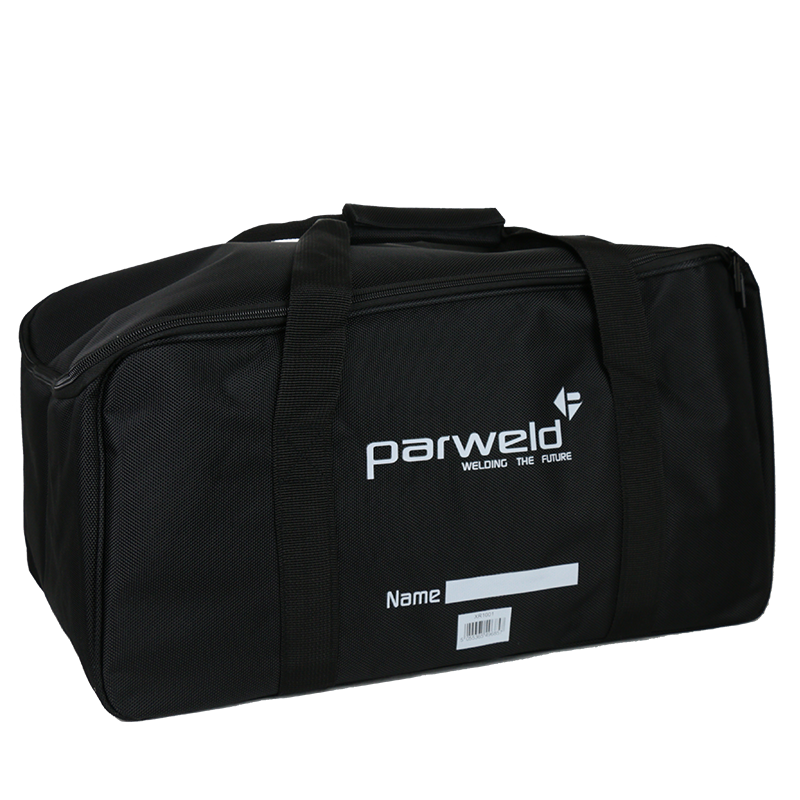

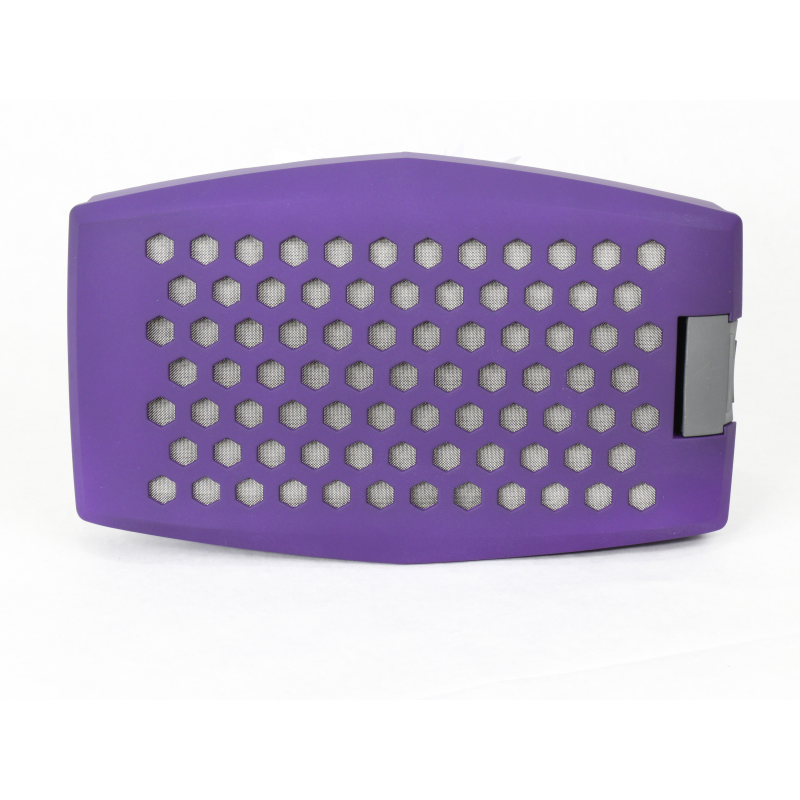

XR944A Kit Contents

XR944A Technical Data

Material: PC + ABS
Motor: Brushless
Fuse: Electronic
Noise Level: 60dB(A)

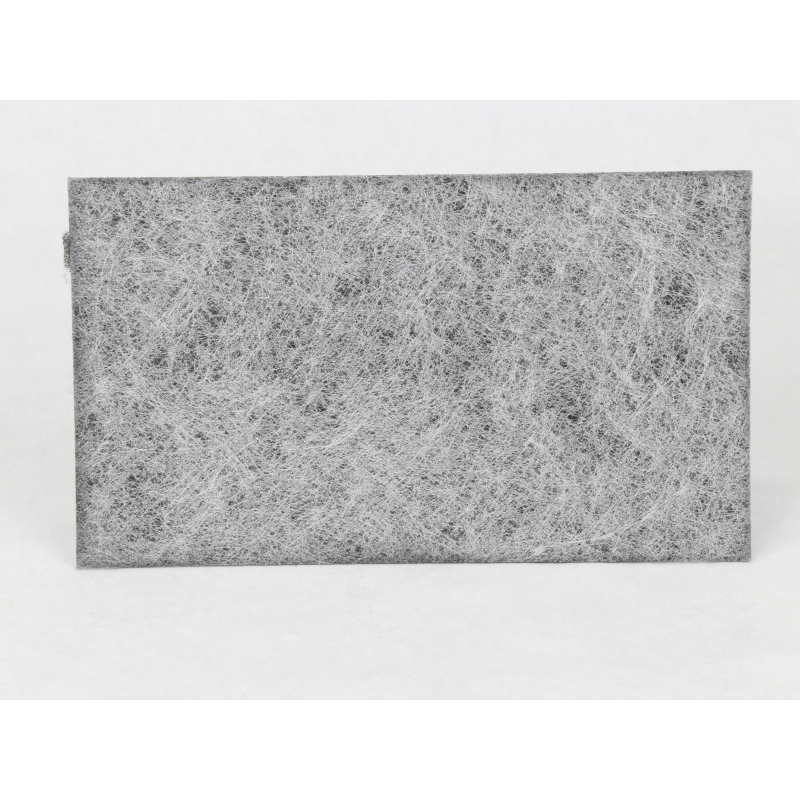

Pre-Filter: Carbon (odour)
Master Filter Type: P3 TH3P R SL for TH3P system (Europe)
Air Flow: 170nl/min or 220nl/min

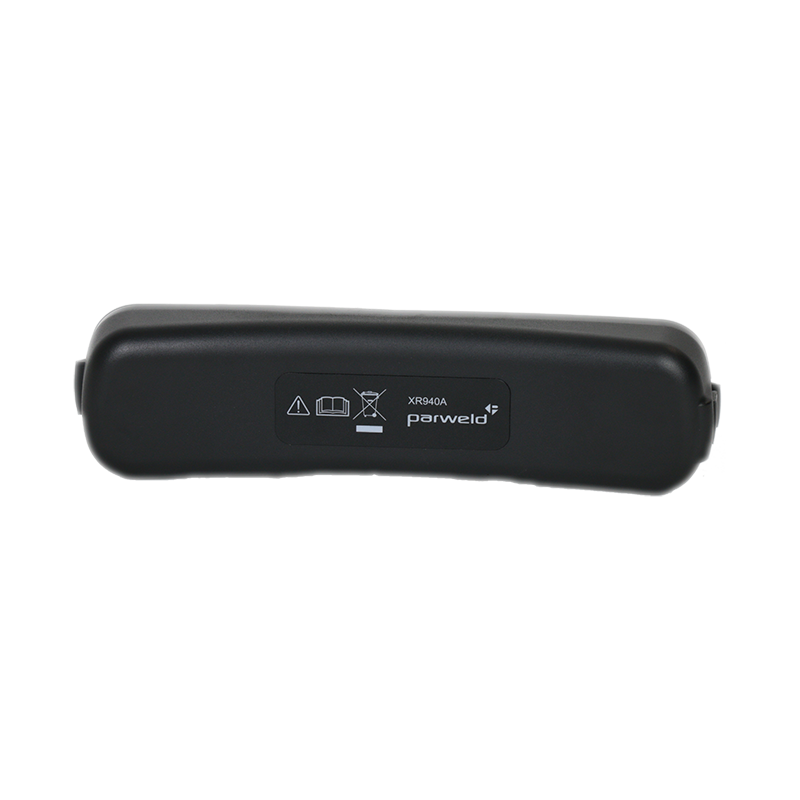

Battery: Li-ion 14.8V rechargeable
Voltage: 14.8V
Capacity: 2.2Ah
Charge: 2.5 Hours Approx.
Charging Cycles: >350
Run Time (170nl/min): 11 Hours*
Run Time (220nl/min): 9 Hours*

* Minimum Fully Charged New Battery And Filter Room Temperature

Air Flow Rate:

170nl/min

Or

220nl/min

Battery Type:

Li-ion 14.8V rechargeable

Voltage / Capacity

14.8V / 2.2Ah

Battery Charging Time

Approximately 2.5 Hours

Charging Cycles:

> 0

Run Time @ 170nl/min

11 Hours
(Minimum Fully Charged New Battery And Filter Room Temperature)

Run Time @ 220nl/min

9 Hours
(Minimum Fully Charged New Battery And Filter Room Temperature)

Noise Level:

99 dB(A)

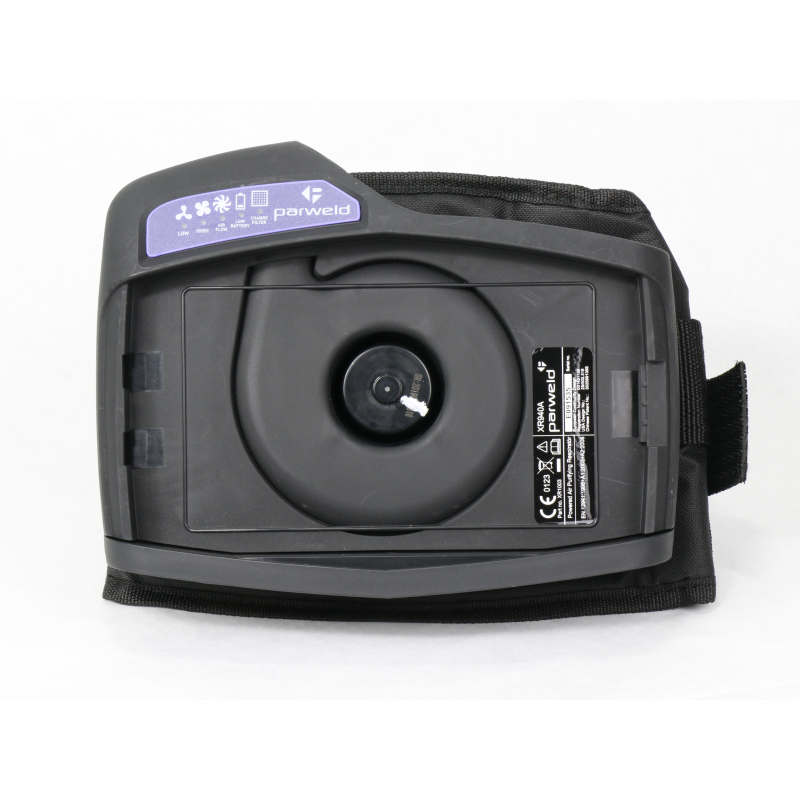

Weight Of Blower Unit

1.5kg
Includes Battery and Comfort Belt

Weight Of Helmet

0.9kg
Includes Air Duct and Face Seal

Blower Unit Weight

1.5kg
Includes Battery and Comfort Belt

Helmet Weight

0.9kg
Includes Air Duct and Face Seal

Helmet Length

224mm

Helmet Width

190mm

Helmet Height

70mm

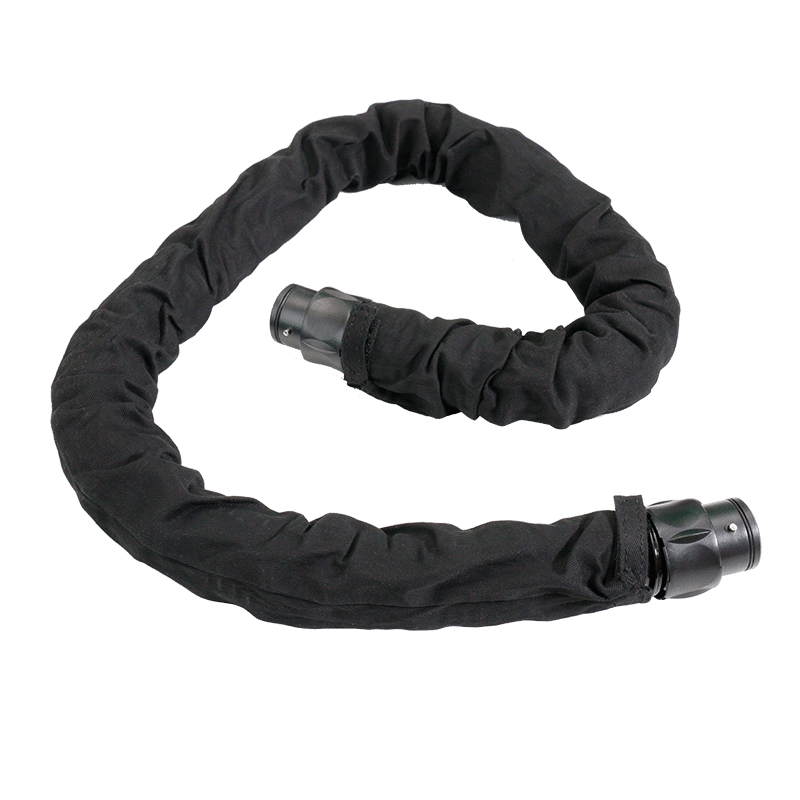

Air Hose Length

850mm

XR944A Ratings & Compliance

TH3P Filter Applications

Metal Sanding & Polishing

Woodwork

Stone & Quartz

For Welding Applications

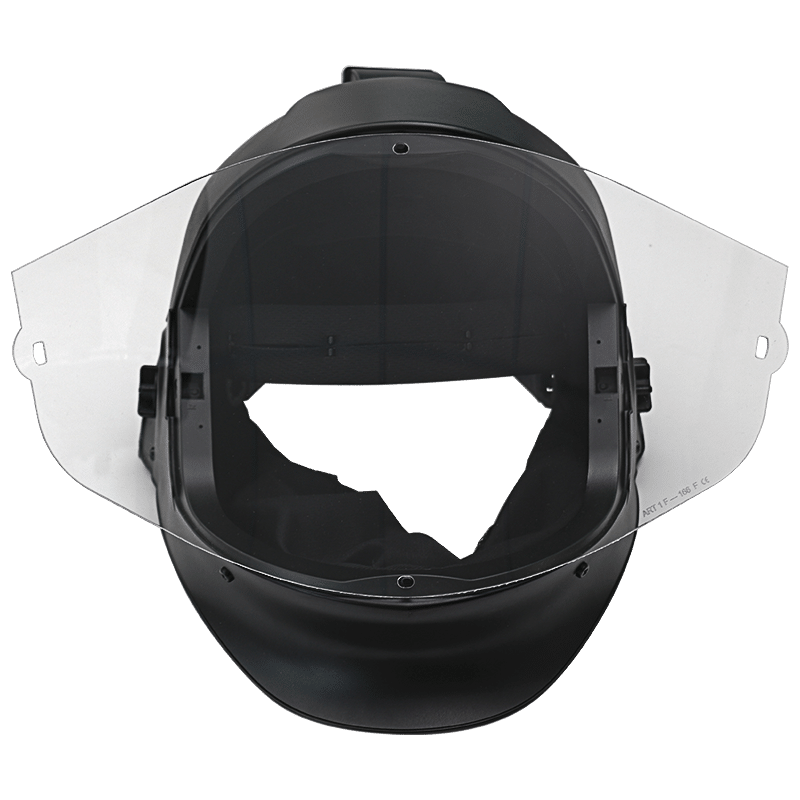

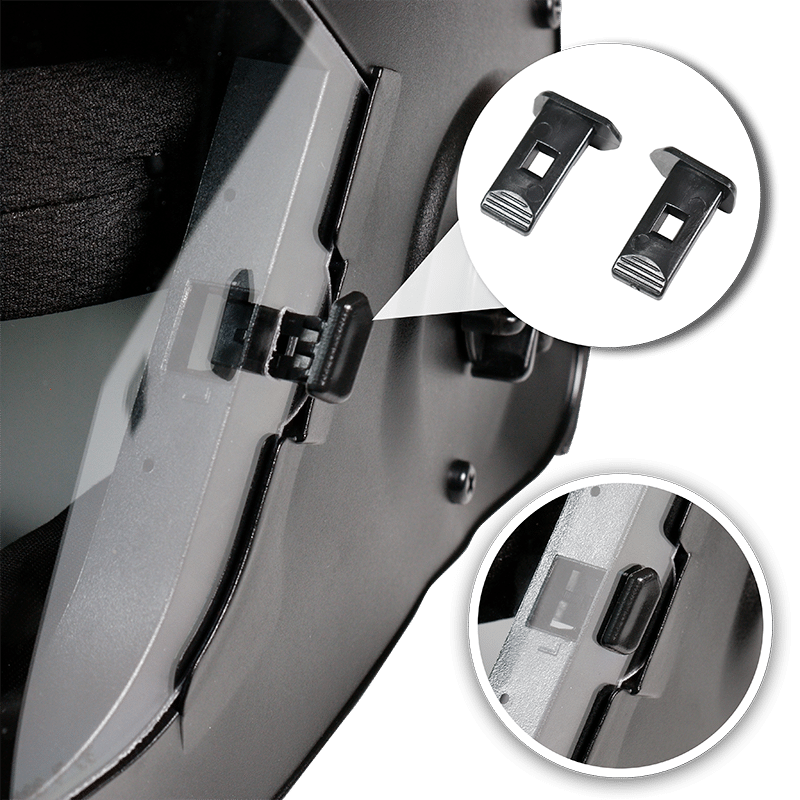

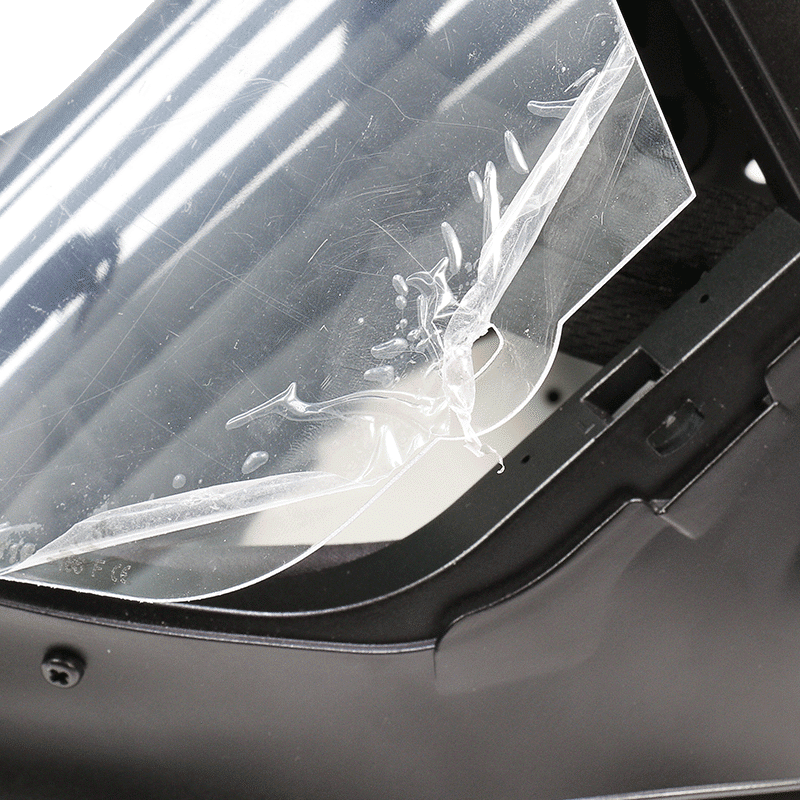

XR944A Lens Removal

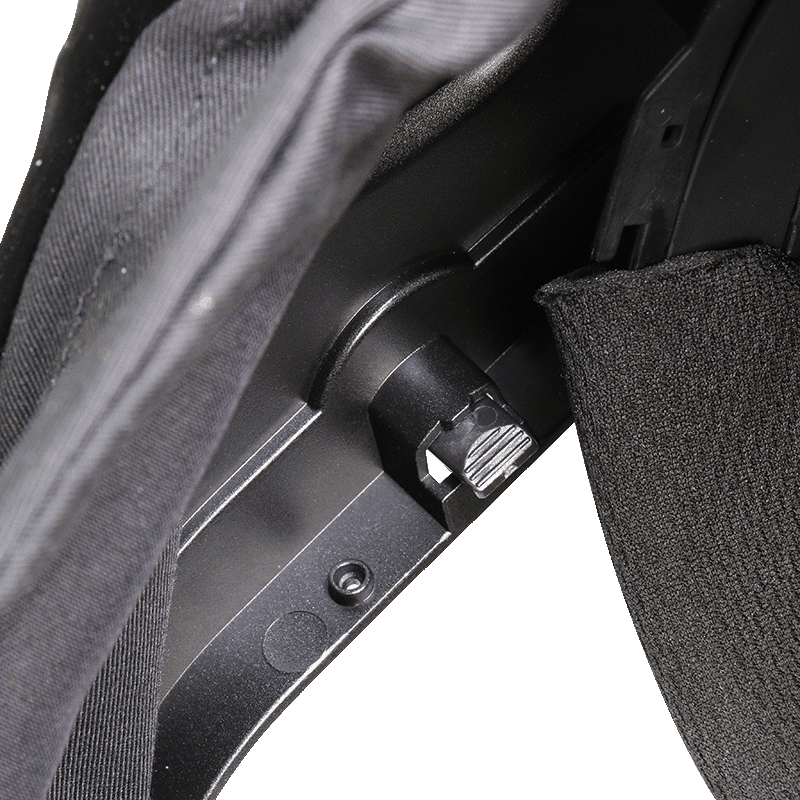

Push Release Button

Remove Clips

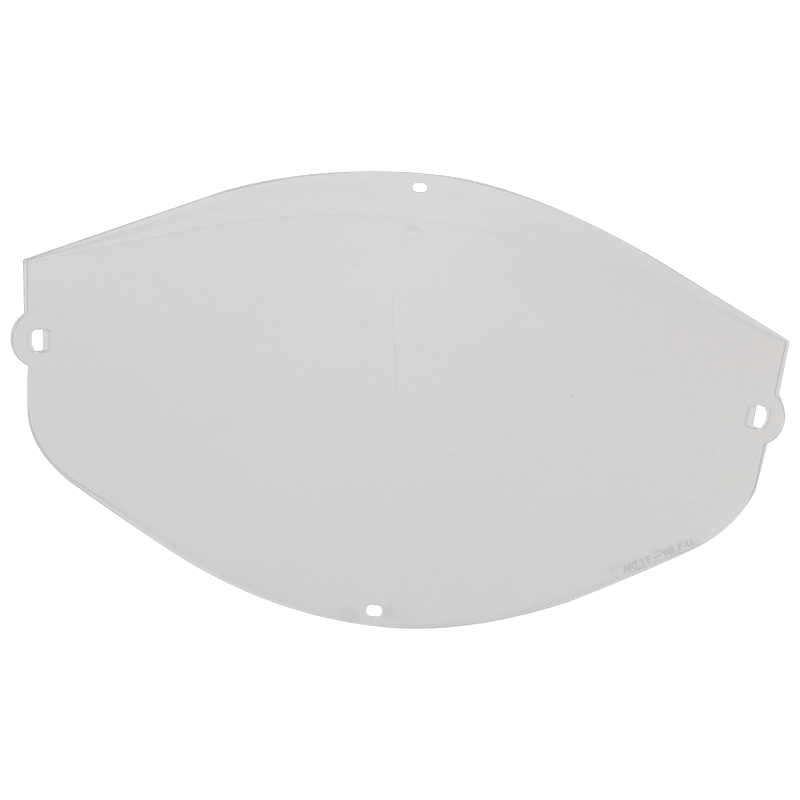

Pop-Out Lens

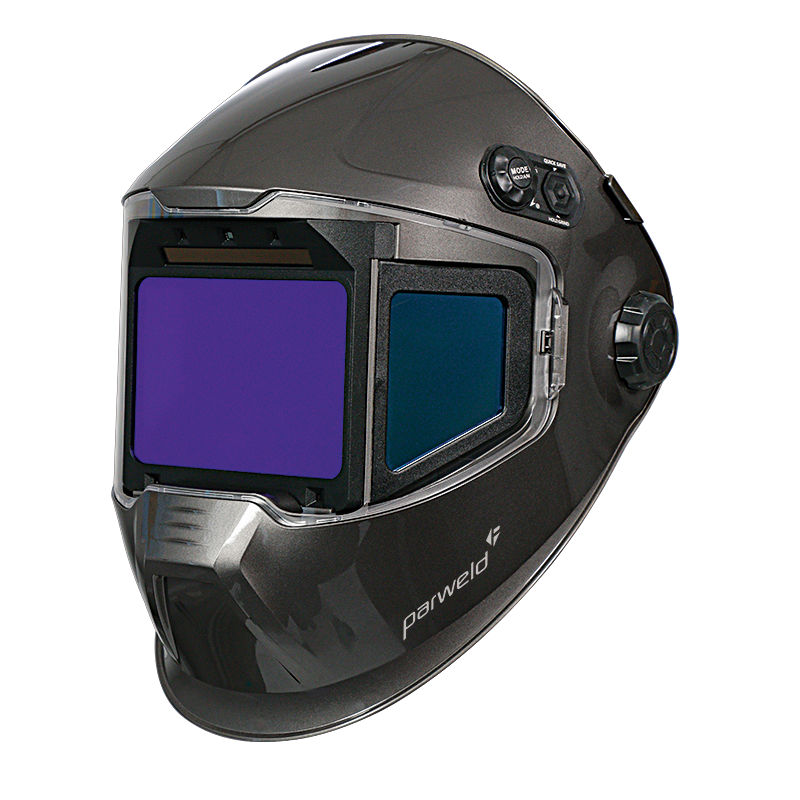

Parweld Helmet & PAPR Range

For Full Vision Protection During Welding Processes

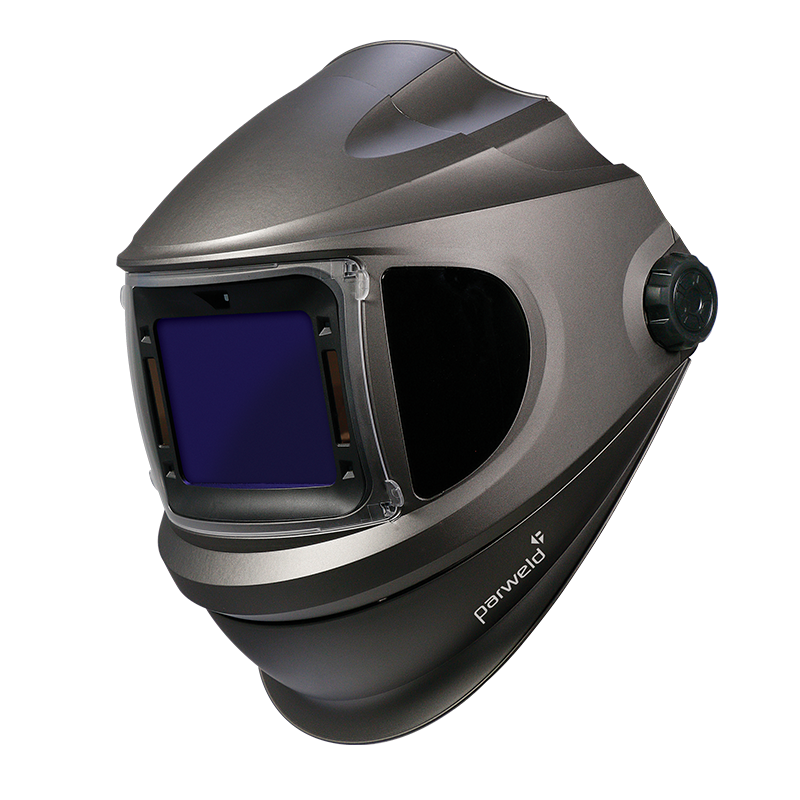

Alternatively, check out the XR943A!

Flip-Up Front welding & grinding helmet with PAPR accessory
